Room Acoustics
Physical Treatment
or
Electronic Correction
Imagine a tranquil pond, its surface smooth and undisturbed. When you toss in a pebble, concentric ripples spread outward—much like sound waves radiating through a listening room. As these ripples encounter reeds, sandbars, rocks, or openings along the shoreline, their energy is scattered, absorbed, reflected, or allowed to escape. In the same way, sound waves in your space interact with diffusers, absorbers, reflectors, and room boundaries, shaping what you ultimately hear.

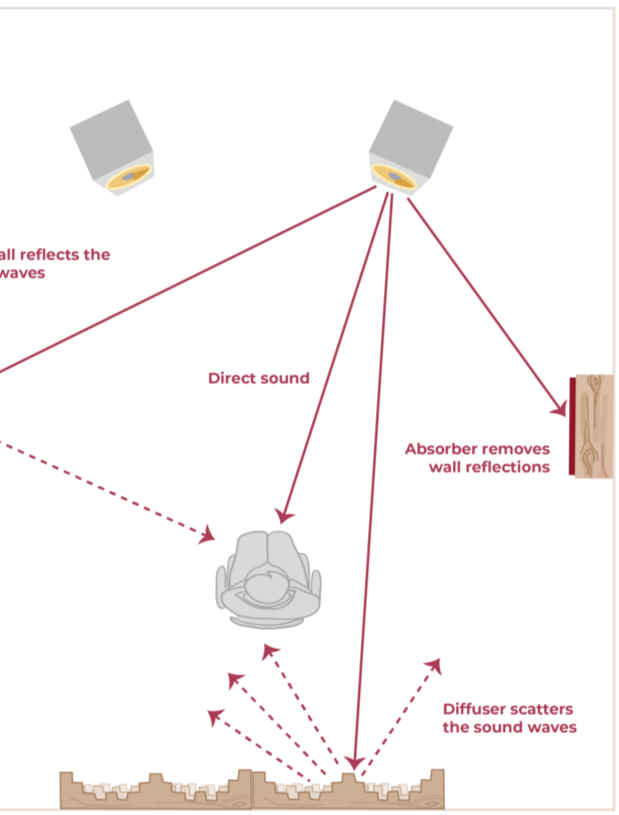

Physical acoustic treatments act like those pond features:
-
Diffusers (reeds) break up and scatter reflections, preventing harsh echoes and preserving spaciousness.
-
Absorbers (sandbars) soak up excess energy, taming reverberation and flutter.
-
Bass traps capture low-frequency buildup and modal ringing, smoothing the room’s bass response.
-
Sturdy, isolated walls (shoreline) contain sound, ensuring minimal leakage in or out of your space.
Enter Electronic Correction:
Yet even the best-placed panels can’t address every challenge. That’s where electronic correction enters—using digital signal processing and precision EQ to compensate for residual frequency peaks, dips, and speaker mismatches. While DSP can’t “unsmear” time-domain reflections once they’ve occurred, it refines the room’s tonal balance, aligns subwoofer phase, and adapts to changing gear or seating positions.
The Pathway to Higher Fidelity
The true path to audio perfection lies in marrying these approaches. Start by diagnosing your room with impulse-response measurements to pinpoint troublesome reflection points and resonant modes. Apply targeted physical treatments to solve the root causes of time-domain smearing. Then employ electronic correction as a final polish, filling in the gaps that panels and traps can’t reach.
By blending physical and digital strategies—and integrating treatments seamlessly into your décor—you’ll transform your listening environment into one where sound waves behave predictably. The result is clarity, punch, and emotional involvement on par with a live performance, without ever sacrificing the style of your space.

The Sum of All Smearing – Why Time Is the Real Resolution
Human hearing excels at detecting minute timing differences. We can perceive inter-aural time differences down to roughly 10 microseconds, and our sensitivity to transient onsets can be finer than 1 millisecond. These thresholds mean that any blur in the time domain—whether from room reflections, electronic jitter, or filter ringing—directly undermines our brain’s ability to reconstruct a realistic, spatial sound-stage.
Human Hearing and Temporal Precision
Our auditory system uses timing to localize sources and decode fine musical detail.
-
Inter-aural time differences (ITDs) are resolved at about 10 µs, letting us pinpoint sound direction within a degree or two.
-
Echo threshold for fusion lies around 1 ms; reflections closer than this merge with the direct sound, affecting clarity without feeling like discrete echoes.
-
Transient acuity—our sensitivity to the leading edge of notes—relies on micro- to millisecond accuracy; any smearing here dulls punch and immediacy.
The Physics of Sound Travel
Every millisecond of delay equals roughly 34 centimeters of extra path length (at 343 m/s).
-
Direct sound arrives first, establishing a precise timing reference.
-
Early reflections traveling an extra meter (≈ 3 ms) already risk smearing transients.
-
Secondary paths doubling that distance add 20–50 ms delays, further blurring the waveform and spatial cues.
Room Acoustics and Temporal Smearing
Acoustic reflections don’t just affect loudness or tone; they smear timing like filter ringing in electronics.
First-Order Reflections
-
Arrive 5–20 ms after the direct sound via single bounces (walls, ceiling, floor).
-
Can reinforce or cancel components of a transient, stretching its apparent attack.
Second-Order Reflections
-
Two-bounce paths (wall-to-wall, floor-to-ceiling) introduce 20–50 ms delays.
-
Merge with earlier sound energy, softening micro-dynamics and masking spatial precision.
Reverberation Decay (RT60)
-
Late reflections beyond 50 ms sustain ambient energy, raising the time-domain noise floor.
-
Long RT60 times “wash out” transients, flatten waveform contrast, and reduce presence.
Electronic Clock Timing and Jitter
Digital-to-analog conversion brings its own timing challenges at the micro- and nanosecond scales:
-
Jitter from USB or SPDIF interfaces shifts sample timing, blurring transients.
-
Clock drift and unstable phase-locked loops (PLLs) degrade phase coherence.
-
Filter pre-ringing introduces time-domain artifacts that smear leading edges.
Just as room reflections build up delayed acoustic energy, these electronic effects accumulate, eroding the temporal integrity of the signal.
The Cumulative Nature of Smearing
Time-domain distortion is systemic—each link in the playback chain adds blur. Common contributors include:
-
Mechanical vibration impacting clocks, capacitors, and regulators
-
Phase rotation in analog crossovers and circuits
-
Power-line noise modulating low-level timing
-
Room reverberation smearing transients
Alone, each source may seem subtle. Together, they shift leading edges, soften attacks, and undermine the sense of presence that makes music feel alive.
Mitigating Temporal Blur
Sharpen your system’s time-domain fidelity by addressing both acoustic and electronic factors:
-
Acoustic Treatments
-
Broadband absorbers at early-reflection points
-
Diffusers to scatter reflections without deadening the room
-
Bass traps to tame low-frequency decay and modal ringing
-
Impulse-response measurements to target problem delays
-
-
Electronic Upgrades
-
Low-jitter re-clocking and precision master clocks
-
High-quality DAC filters with minimal pre-ringing
-
Mechanical isolation (footers, vibration control)
-
Reducing just one source of smearing can feel like a lens snapping into focus—attacks become clearer, spatial cues more vivid, and emotional impact more immediate.
Integrating Acoustic and Electronic Time-Domain Fidelity
A perfectly re-clocked DAC or vibration-free chassis still needs a well-tuned room. Time-domain accuracy only matters if it reaches your ears unpolluted by reflections. Technologies like MQA aim to correct microsecond-scale errors in the digital chain, but without complementary acoustic treatment, much of that gain is lost in the room. True resolution emerges when every element—from clock stability to wall treatment—aligns to deliver un-blurred transients and precise spatial information.
Summary Lens
Time is the ultimate lens through which musical reality is revealed. By treating electronic jitter and filter artifacts with the same rigor as acoustic reflections and decay, you unlock the full potential of your system. The more faithfully you preserve microsecond-level timing, the closer you get to the illusion of live presence and emotional connection that makes listening to music not just an act, but an experience.

The Role of Room Acoustics in Temporal Resolution
Acoustic reflections and reverberation are not just matters of loudness or tonal balance. They fundamentally shape how our brain interprets timing information. Just as jitter or filter ringing blurs transients in electronics, room reflections smear sound in the time domain, softening leading edges and masking micro-dynamics.
First- and Second-Order Reflections
Each surface in your listening space contributes additional time-shifted copies of the direct sound.
-
Direct sound: arrives within 0 ms and establishes the reference for timing cues.
-
First-order reflections: single bounces (walls, floor, ceiling) typically arrive 5–20 ms after the direct sound and reinforce or cancel parts of the original transient.
-
Second-order reflections: two-bounce paths (floor-to-wall, wall-to-wall) arrive 20–50 ms later, further blurring the waveform envelope.
Together, these early reflections merge with the direct sound, stretching the apparent attack of a note and reducing time resolution.
RT Decay and Temporal Smearing
Reverberation time (RT60) measures how long it takes for reflections to decay by 60 dB and directly influences temporal clarity. The direct sound arrives instantly, giving our brain a precise reference for transient attacks.
Early reflections—single and double bounces off walls and ceilings arriving between roughly 5 ms and 50 ms—either reinforce or blur those attacks, softening leading edges and reducing micro-dynamic definition.
Beyond 50 ms, the overlapping reflections of the RT decay sustain ambient energy that washes transient detail into a diffuse wash, masking spatial cues.
As RT60 lengthens, the cumulative energy of these delayed reflections raises the time-domain noise floor in much the same way as filter pre-ringing, smearing note onsets and decays, flattening waveform contrast, and weakening our perception of presence and clarity.
Mitigating Temporal Smearing
Optimizing room acoustics is as critical as upgrading cables or footers when it comes to time-domain fidelity:
-
Absorption: Place broadband absorbers at early‐reflection points to capture unwanted bounces.
-
Diffusion: Use diffusers to scatter reflections, preserving liveliness while minimizing discrete echoes.
-
Bass Traps: Control low-frequency decay to prevent modal ringing from obscuring transient definition.
-
Measurement & Adjustment: Employ impulse‐response analysis to identify troublesome time-delay clusters and tune treatments precisely.
Each panel, diffuser, or trap you add reduces smearing by interrupting the buildup of delayed energy, sharpening attacks and restoring phase coherence.
Integrating Room Acoustics with System Tuning
Even a perfectly reclocked DAC or vibration-isolated chassis will be held back by a reverberant room. Time-domain accuracy is only meaningful if it reaches your ears unpolluted by late reflections. Just as MQA works to reclaim microsecond-scale timing errors in the digital chain, acoustic treatment recovers microsecond-level clarity lost in the physical space.
When time-domain errors—electronic or acoustic—are minimized, the music’s fine structure emerges. Attacks snap into focus. Spatial cues become more pronounced. The sense of performer location and room ambience coalesces into a coherent, emotionally engaging sound-stage.
Sum of Two Halfs
Room acoustics and electronic time-domain performance are two halves of the same coin. Both demand meticulous attention to first-and second-order distortions. Addressing only one leaves your system only half-resolved. True resolution occurs when every element—from clock stability to wall treatment—works together to deliver un-blurred transients and unambiguous spatial information. This synergy between sound and time is the ultimate lens through which musical reality is revealed.

Acoustic Treatment Correction or Electronic Room Correction
Achieving pristine sound in any listening environment—whether it’s a home cinema, recording studio, or dedicated hi‑fi room—requires more than just premium equipment. Room acoustics play a critical role in how audio waves travel, reflect, and interact with your space. Two major approaches emerge to tackle acoustic challenges: physical acoustic treatments (such as bass traps, absorptive panels, and diffusers) and digital room correction (via software-based EQ or DSP). During our consultations, we’re often asked which method reigns supreme. The truth is that these methods are complementary—each addressing unique aspects of the acoustic picture—to yield the most immersive and accurate sound experience.
1. The Essence of Acoustic Treatment
1.1 What It Is
Acoustic treatment involves installing physical materials—absorbers, diffusers, bass traps—to influence how sound interacts with a room. By reducing reflections, controlling reverberation times, and moderating low-frequency buildup, these treatments directly tackle the time‑domain issues that can result in muddy or echo‑prone audio.
1.2 Key Benefits
-
Early Reflection Control: Absorptive panels placed at first‑reflection points preserve mid‑ and high‑frequency clarity.
-
Bass Smoothing: Well‑designed bass traps positioned in room corners tame standing waves and smooth low‑end response.
-
Natural Sound: Strategically placed diffusers on rear walls or ceilings maintain spaciousness without producing harsh echoes.
Why It Matters: Physical treatments address the root causes of reflections and resonances, ensuring acoustic issues are mitigated before they impact your listening experience.
1.3 Key Acoustic Calculations
For a reliable assessment of your room’s performance, our online tools incorporate industry‑standard equations.
For example, the Sabine Formula for reverberation time (RT60) is used extensively:
RT60=0.161×VA\text{RT60} = 0.161 \times \frac{V}{A}
Where: • V is the room volume in cubic meters. • A is the total effective absorption area in square meters, calculated by:
A=∑(Si×αi)A = \sum (S_i \times \alpha_i)
Here, each SiS_i is the surface area of a material, and αi\alpha_i is its corresponding absorption coefficient.
Additionally, we evaluate the clarity of your space using the Clarity Index (C80):
C80=10×log10(∫080msp2(t) dt∫80ms∞p2(t) dt)\text{C80} = 10 \times \log_{10}\left( \frac{\int_0^{80\text{ms}} p^2(t)\, dt}{\int_{80\text{ms}}^{\infty} p^2(t)\, dt} \right)
These formulas, along with others tailored to your room's unique measurements, allow us to fine‑tune every aspect of the listening experience, ensuring balanced, clear, and dynamically refined sound.

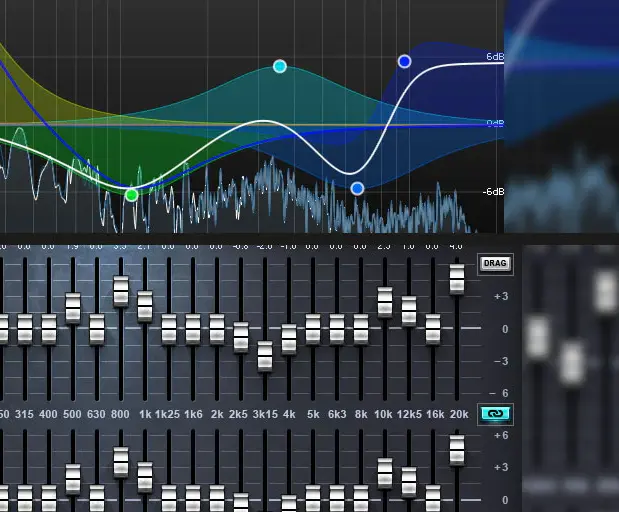

2. Room Correction (DSP): The Digital Approach
2.1 How It Works
Room correction software uses measurement microphones to map your room’s frequency response accurately. It then applies digital EQ filters to compensate for peaks and dips caused by intrinsic acoustic imperfections.
2.2 Main Advantages
-
Fine‑Tuning Frequency Response: Digital filters polish out residual peaks or dips, complementing the benefits of physical treatments.
-
Speaker Matching: Software aligns tonal imbalances among multiple speakers, ensuring a cohesive multi‑channel performance.
-
Subwoofer Integration: Advanced DSP systems expertly manage phase alignment and crossover blending, delivering tighter, more controlled bass.
Why It Matters: DSP provides precise frequency adjustments that refine the overall sound profile, adapting to your personal listening preferences for a truly customized experience.
3. Comparing Strategies: Physical vs. Digital
3.1 Core Differences
-
Physical Treatments: Tackle time‑domain issues—such as reflections, reverberations, and standing waves—directly at the source, enhancing clarity and imaging.
-
DSP Correction: Focuses on adjusting the output signal from your speakers to balance frequency response. However, it cannot cancel out time‑based reflections once they have occurred.
3.2 Example Scenario
Imagine your room suffers from noticeable slap‑back echoes from parallel walls:
-
Acoustic Panels would absorb or scatter those reflections right at the source.
-
Room Correction might reduce the amplification of problematic frequencies, but the underlying physical echo may still blur details and stereo imaging.
Key Takeaway: Physical solutions resolve intrinsic acoustic flaws at their origin, while digital corrections serve as a final polish—refining the frequency balance and enhancing overall fidelity.
4. Pros and Cons of Each Approach
4.1 Acoustic Treatment
Pros:
-
Directly resolves reflections, standing waves, and reverberation issues.
-
Enhances imaging, clarity, and the natural quality of sound.
-
Provides a permanent solution without the need for ongoing software adjustments.
Cons:
-
Installation can be invasive and may sometimes challenge aesthetic preferences.
-
High‑performance treatments (such as tuned bass traps) may be costly and require professional guidance.
-
Over‑treatment has the potential to create an unnaturally “dead” space if not correctly balanced.
4.2 Room Correction (DSP)
Pros:
-
Efficiently refines overall frequency response across all speakers.
-
Offers flexible, on‑the‑fly adjustments for changes in gear or room layout.
-
Advanced systems support features like multi‑seat optimization and dynamic range control.
Cons:
-
Cannot resolve time‑domain issues like echoes or flutter.
-
Overly aggressive EQ adjustments might strain amplifiers or impact dynamic performance.
-
Some DSP systems can be proprietary, necessitating periodic updates or recalibrations.
5. Harmonizing Digital and Physical Solutions
For most rooms, the best results come from a combined approach:
-
Start with Acoustic Treatment: Address primary reflections and standing waves using absorptive and diffusive materials.
-
Implement DSP Correction: Once physical issues are mitigated, digital correction can further refine the frequency balance.
-
Evaluate and Adjust: Use measurement tools (such as REW) or your system’s built‑in analysis to confirm improvements and fine‑tune both the acoustic setup and DSP settings.
6. Practical Tips for Success
-
Prioritize Budget Allocation: Focus first on essential acoustic treatments (absorbers, bass traps) before investing in advanced DSP systems.
-
Optimize Room Layout: Simple measures, including symmetrical speaker placement and managing reflective surfaces, can significantly reduce the need for digital corrections.
-
Avoid Overcorrection: If DSP adjustments are excessively large—especially at lower frequencies below 100 Hz—consider revisiting physical treatments such as bass trapping or repositioning your speakers/subwoofer.
The Art and Science of Audio Perfection
At The Discerning Listener, we believe there is no substitute for hands-on acoustic testing and physical site inspection. The nuances of room behavior—its reflections, decay rates, and modal response—can only be properly understood through in-person measurement, guided observation, and careful evaluation of treatment strategies. Our acoustic consultations focus first and foremost on addressing the real-world variables that affect time-domain clarity and spatial fidelity.
To support this process, our online calculators are available as educational tools—valuable for exploring concepts and estimating treatment parameters, but secondary to in-room diagnosis. Acoustic resolution is achieved when measurable anomalies are tackled with appropriately placed absorbers, diffusers, traps, and structural solutions tailored to your space’s unique fingerprint.
While DSP has its place, it is no panacea. Digital correction is most effective when built atop a solid physical foundation, serving to fine-tune frequency balance rather than mask room-based smearing. A well-treated room requires less correction and delivers more musical truth.
From personalized room assessments to calibrated treatment plans, we offer expertise that blends engineering precision with a deep respect for the emotional power of music. Reach out to The Discerning Listener and discover a space where the sound isn’t just heard—it’s felt, with time-domain integrity preserved and your listening experience elevated to its fullest potential.

Acoustic Control v Acoustic Isolation
Room acoustics are fundamental in creating a space that offers the best auditory experience, whether it's a home listening room, recording studio, or office. Two primary concepts often come up in discussions about room acoustics: Acoustic Control and Acoustic Isolation (also known as soundproofing). While these terms are related, they address different aspects of sound management, and understanding their differences is crucial for achieving optimal sound quality.
Acoustic Control:
Acoustic Control involves managing the sound within a room to improve its auditory characteristics. This can include using absorptive materials to reduce echoes, diffusive materials to scatter sound, and reflective surfaces to direct sound waves. Acoustic control can be achieved without altering the room's structure, and its goal is to enhance the sound experience within the space.
Acoustic Isolation:
Acoustic Isolation, on the other hand, is about preventing sound from entering or leaving a room. This is accomplished through specialized construction methods and materials that block sound transmission through walls, floors, ceilings, doors, and windows. While you can achieve good acoustic control without isolation, effective acoustic isolation typically requires good acoustic control to address internal sound reflections and echoes.
The Interplay Between Control and Isolation:
There is often confusion about the relationship between acoustic control and isolation. While you can implement acoustic control without isolation, achieving the best results from isolation necessitates incorporating acoustic control measures. A soundproof room can still suffer from poor sound quality if internal reflections and echoes are not managed.
Impact of Household Furniture on Acoustic Control
Household furniture can significantly influence acoustic control. Soft furnishings, such as sofas, curtains, and carpets, can absorb sound, reducing reflections and echoes. Hard surfaces, like wooden tables and cabinets, can reflect sound and may require diffusive or absorptive treatments to balance the acoustics.
Achieving Good Acoustics Without a Recording Studio Look
A common misconception is that achieving good acoustics means turning a room into something that resembles a recording studio. However, this isn't necessarily the case. Elegant and discreet acoustic solutions can blend seamlessly into your living spaces. For example, decorative acoustic panels, rugs, and strategically placed bookshelves can provide both aesthetic appeal and sound management.
Creating a well-balanced acoustic environment doesn't have to compromise the visual appeal of your space. With thoughtful design and the right materials, you can achieve excellent sound quality while maintaining the room's intended look and feel.

Room Acoustic Control
The Pathway to Room Acoustics Audio Performance
At The Discerning Listener, we are dedicated to enhancing your audio experience through the art and science.
Our mission is to guide you on the pathway to achieving audio performance that truly resonates. Whether you're an audiophile, music lover, or Hi-Fi enthusiast, our expert insights and approach to solutions are designed to maximise sound quality in any space.
Explore our comprehensive resources on room acoustics, book an appointment for your personalised audio solutions consultation, and discover how advanced technologies elevate your listening environment.
Join us on this journey to audio excellence and discover how optimal room acoustics can transform your auditory experience.
Starting Point:
Assessing Room Acoustics
The journey to achieving exceptional Hi-Fi audio performance begins with understanding the room's acoustic behavior. Before selecting components, speakers, or cables, it's crucial to evaluate the room's basic acoustic properties. The room's acoustic nature significantly impacts the overall performance of the Hi-Fi system, often more so than the cost of the electronics involved.
Step 1:
Evaluating the Room's Acoustic Properties
Conducting a thorough evaluation of the room's acoustic characteristics is essential. This assessment helps identify the system's performance requirements and ensures that all components work synergistically. Without this understanding, achieving optimal sound quality becomes a matter of chance rather than design.
Step 2:
Understanding Acoustic Treatments
Many people confuse Acoustic Isolation, which prevents sound from escaping or entering a space, with Acoustic Control, which manages sound behavior within the room. Most residential environments benefit more from Acoustic Control. Effective Acoustic Control doesn't necessitate transforming your living space into a recording studio. Instead, strategic placement of electronics and household furniture can create a balanced and symmetrical acoustic image.
Step 3:
Importance of Room Acoustics
Disregarding the room's acoustic properties when designing an audio system is a fundamental oversight, irrespective of budget. The physics of sound behavior in a given space cannot be ignored. Suggesting that speakers alone will achieve a particular sound quality overlooks this critical aspect.
Step 4:
Achieving Room/Equipment Synergy
The cornerstone of high-quality audio lies in the synergy between the room and the equipment. Understanding the basic personalities of the components and how they interact within the specific acoustic environment is key. This knowledge helps in matching components for optimal performance.
Step 5:
Balancing Sonic Characters
Much like ingredients in a recipe, sonic traits must be carefully balanced. Specialist designers can achieve superior musical performance even with modest budgets by balancing these characteristics effectively. This approach avoids the pitfalls of trial and error, which can be costly and time-consuming.
Step 6:
Engaging Specialists
Engaging a specialist can save time and resources. Specialists bring a wealth of experience in establishing component synergy, ensuring that all elements of the system work harmoniously. This approach minimizes the complexities and subjective opinions often associated with achieving quality sonic results in Hi-Fi systems.
Step 7:
Understanding the Room as a Physical System
The room itself is as crucial as the Hi-Fi components for achieving a balanced frequency response and musical results. Aim for integration between the room and the audio system to enhance performance and maximize your investment.
Step 8:
Categorising Acoustic Environments
Rooms can be categorized based on their acoustic characteristics: Hard Room, Soft Room, and Open Plan. Each type has distinct sonic properties that affect how sound behaves within the space. Understanding these categories helps in tailoring the audio system to suit the specific environment.
Step 9:
Clarifying Acoustic Treatment Misunderstandings
Revisiting the common confusion, it's essential to differentiate between Acoustic Isolation and Acoustic Control. While Acoustic Isolation focuses on sound containment, Acoustic Control is about managing how sound interacts within the space. Most homes benefit more from the latter, creating an environment where sound quality is enhanced through thoughtful design.
Follow the System
Achieving high-fidelity audio performance is a systematic process that starts with understanding and controlling the room's acoustic properties. By focusing on the synergy between the room and the equipment, balancing sonic characteristics, and engaging specialists, you can create an audio system that delivers exceptional sound quality. The room's role as a physical system is crucial, and effective integration enhances both the performance of the equipment and the overall listening experience.

Room Acoustics: The Physical System
The Complexities of Hi-Fi Systems:
Achieving Sonic Excellence
The intricacies of Hi-Fi systems and the myriad opinions on how to achieve superior sonic results are as diverse as the brands, genres, and rooms these systems occupy.
The Physical System: Room Acoustics
The room, an extension of the Hi-Fi components, forms the Physical System and is paramount when striving for system synergy to achieve a balanced frequency response and musical excellence. The starting point must always be the room. Evaluating the room's acoustic behavior is essential before selecting any components, speakers, or cables.
Importance of Room Acoustics
The room's sonic attributes, often the most overlooked component, have a 99.99% impact on the performance of Hi-Fi systems, regardless of the investment in electronics. Assessing the basic acoustic properties of the room is crucial to understanding system performance and achieving synergy.
A basic assessment of room acoustics without treatment should aim for an RT60 within the desired range of 0.3 to 0.5 seconds. This range ensures optimal sound clarity and quality. above this range the need for appropriate acoustic treatments is recommended.
Understanding that while an RT60 of 0.3-0.5 seconds is desirable it is no indication of the rooms voice, the frequency response of the room.
Room/Audio System Integration
Room/audio system integration is the goal. Identifying and designing a system with the required attributes improves overall equipment performance, maximizing the return on your investment. Acoustic environments can be categorized into three basic types:
-
The Hard Room
Effective acoustic treatments likely to include Absorption Diffraction, acoustic assessment required for verification
-
The Soft Room
Effective acoustic treatments likely to include Diffusion Diffraction, acoustic assessment required for verification
-
The Open Plan
Effective acoustic treatments likely to include Absorption Diffraction Diffusion, acoustic assessment required for verification
Isolation vs. Control
One of the greatest misunderstandings of room acoustic treatments is the difference between Acoustic Isolation and Acoustic Control. Acoustic Isolation prevents sound from escaping or entering the space, while Acoustic Control manages sound behavior within the space. Most domestic situations benefit significantly from Acoustic Control without needing full isolation.
Control of a room's acoustic nature can be achieved with strategic placement of the electronic system and household furniture. Achieving a balanced and symmetrical acoustic image requires careful consideration of the room's acoustic behavior.
Key to Hi-Fi Quality:
System Synergy
Ignoring the acoustic nature of the space when designing an audio system is ill-informed. Speakers alone cannot achieve a particular sound without accounting for the physics of sound behavior within the space. The key to designing a Hi-Fi quality audio result is room/equipment system synergy. The voicing of the room directly influences the voicing selection of the components, making it crucial to consider room acoustics in the design process.
Understanding Components and Equipment
Each component and piece of equipment has distinct personalities that fall into one of three categories. Understanding these personalities and their interactions is advantageous when matching components synergistically within a Hi-Fi system for optimal performance in a specific acoustic environment.
Creating the Ultimate Listening Experience
When the Hi-Fi system and room acoustic personalities are complementary. Properly set up and integrated high-end reference components produce music faithfully to the recording, creating moments of amazement and engagement through the release of dopamine, serotonin, and endorphins.
High-performing systems handle diverse musical tastes and styles with equal deft and poise, offering an immersive auditory experience. The mastery of transparency and realism in audio systems makes it challenging to return to a genre-specific character system.
Explore more insights and resources on The Discerning Listener's website to maximize your Hi-Fi system's performance and achieve the ultimate listening experience. Our passion and expertise ensure you get the maximum bang for your buck and avoid the pitfalls of "snake oil" solutions.

Final Thought:
Acoustic Treatment
or
Electronic Correction
Achieving musical clarity begins with mastering your room—the pond’s shoreline that contains and shapes every ripple. A meticulously treated space not only commands speaker size, power, placement, and SPL requirements but also delivers the highest return on investment. Only after the room “pond” is tamed does electronic correction serve as an effective final polish.
Impact and ROI Scores by Approach
-
Acoustic Isolation (Shoreline) Impact Score: 9 / 10 ROI Score: 9 / 10
-
Broadband Absorption (Sandbars) Impact Score: 8 / 10 ROI Score: 8 / 10
-
Diffusion (Reeds) Impact Score: 7 / 10 ROI Score: 7 / 10
-
Electronic Correction (DSP/EQ) Impact Score: 5 / 10 ROI Score: 6 / 10
Hierarchical Implementation Roadmap
-
Assess Room Acoustics Measure RT60, modal behaviour, and first-reflection points to establish a baseline for treatment.
-
Seal and Isolate Boundaries Close gaps, upgrade doors/windows, and reinforce walls to prevent sound leakage. This maximizes the containment of direct and reflected energy.
-
Install Low-Frequency Control (Bass Traps) Position traps in corners and pressure zones to tame room modes and smooth bass response before adding absorbers or diffusers.
-
Apply Broadband Absorbers Target first-reflection spots on walls, ceiling, and floor to reduce reverberation time into the optimal range (0.3–0.5 s) and control flutter echoes.
-
Deploy Diffusion Elements Scatter mid/high-frequency reflections across rear walls and ceilings to maintain spaciousness without introducing harsh echoes.
-
Optimize Speaker Size, Power, and Placement Let your treated room dictate speaker footprint, amplifier headroom, and listening distances to achieve desired SPL and imaging precision.
-
Verify with Measurements Use impulse-response and frequency-response analysis to confirm that physical treatments have addressed time-domain smearing and modal peaks.
-
Implement Electronic Correction With a well-tuned sound-stage, apply DSP/EQ to refine residual frequency imbalances, align subwoofer phase, and adapt to configuration changes.
-
Fine-Tune and Re-Measure Iterate minor adjustments—tweaking DSP filters or repositioning select panels—to lock in optimal performance.
Why Physical First, Digital Second?
-
Physical treatments directly eliminate time-domain smearing at its source, sharpening attacks and preserving spatial cues.
-
A properly isolated, absorptive, and diffusive environment reduces the magnitude of electronic corrections needed, preventing excessive filter gain that can strain amplifiers and introduce phase artefacts.
-
Only after reflections, reverberation, and room modes are managed should DSP step in to perfect the frequency balance.
This ordered, room-first strategy yields maximum clarity, punch, and emotional impact—with each dollar spent delivering the greatest acoustic benefit.
